K8400 VERTEX Raspberry Pi 3 Model B Right Side Mount by Bo_Ris
by Thingiverse
Last crawled date: 4 years, 7 months ago

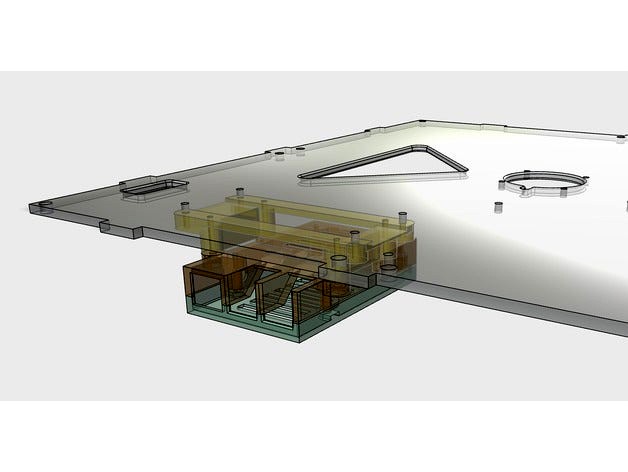

This is yet another way to mount Raspberry to the bottom of Vertex K8400 printer and at the same time hold LCD flat cable in place.
You will need four M3 x 12mm and four M3 x 20mm screws. Raspberry's mounting holes have to be slightly widened as M3 x 20mm screws will pass through them.
If you want Raspberry ports to be aligned with the right side panel of the printer print pi3_box_mount_part2a.stl.
If you want them to be hidden (shifted 15mm to the left) print pi3_box_mount_part2.stl thing.
You will need four M3 x 12mm and four M3 x 20mm screws. Raspberry's mounting holes have to be slightly widened as M3 x 20mm screws will pass through them.
If you want Raspberry ports to be aligned with the right side panel of the printer print pi3_box_mount_part2a.stl.
If you want them to be hidden (shifted 15mm to the left) print pi3_box_mount_part2.stl thing.
