K3NG Keyer - Practice keyer by jmatonis

Last crawled date: 4 years, 7 months ago

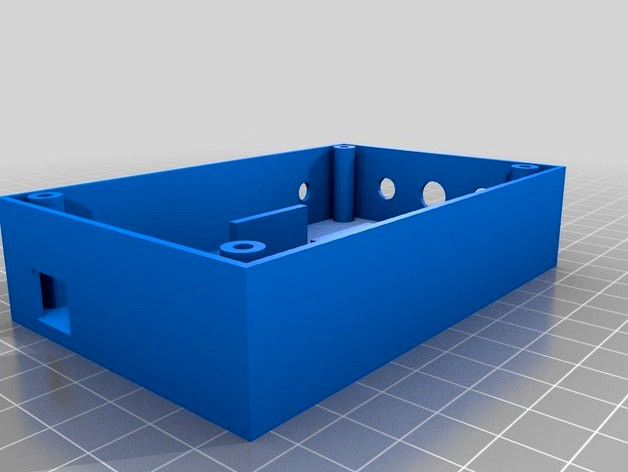

Here is a case for the K3NG keyer. I designed this case to be used as a practice keyer. There is a slot for a 9v battery and room to add a power supply. There is also a spot to mount the arduino pro mini, which might need some filing to clip it in place.
The file can be modified here:
https://www.tinkercad.com/things/7UI29QwtQbm-copy-of-k3gn-keyer-case/editv2
The components I use are as follows:
power supply.http://www.ebay.com/itm/MB102-Breadboard-Power-Supply-Module-3-3V-5V-F-Solderless-Arduino-mini-usb-M112/301728464448?_trksid=p2045573.c100508.m3226&_trkparms=aid%3D555017%26algo%3DPL.CASSINI%26ao%3D1%26asc%3D44728%26meid%3D4206e5698a8d42f4a869429108d065e9%26pid%3D100508%26rk%3D1%26rkt%3D1%26
Arduino Pro minihttp://www.ebay.com/itm/3X-Arduino-Pro-Mini-Board-with-Free-Headers-ATMEGA328P-16MHz-5V-ATMEGA328-/222545033705?hash=item33d0b7b9e9:g:f0cAAOSw~XpZQCoM
LCDhttp://www.ebay.com/itm/Blue-Serial-IIC-I2C-TWI-2004-204-20X4-Character-LCD-Module-Display-For-Arduino-/381375068233?hash=item58cbb9b849:g:oL8AAOSwFAZTviYj&autorefresh=true
Push Buttons (still waiting)http://www.ebay.com/itm/10x-Mini-Lockless-Momentary-ON-OFF-Push-Button-SPST-Switch-Car-Boat-Universal/401176670996?ssPageName=STRK%3AMEBIDX%3AIT&_trksid=p2060353.m2749.l2649
SPDT Switch - which I had on hand
73
Enjoy!
