JTAG adapter / converter chassis by palindrom
by Thingiverse
Last crawled date: 4 years, 8 months ago

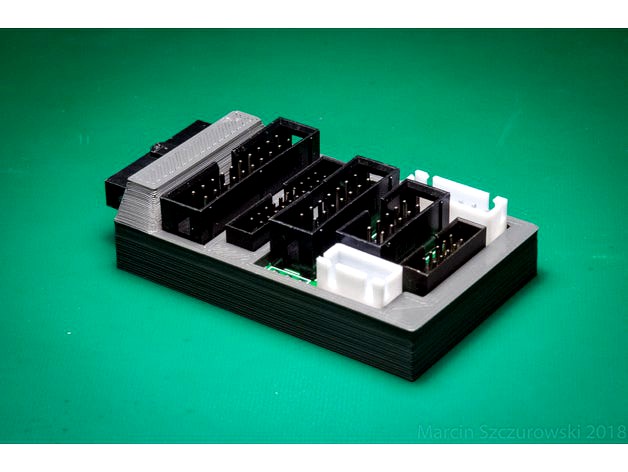

This is a simple chassis for a popular JTAG adapter:https://www.amazon.com/Gikfun-J-link-Emulator-Adapter-Converter/dp/B00RBHOSTY/https://www.aliexpress.com/item/3PCS-LOT-20P-14P-10P-ARM-JTAG-Adapter-Board-Support-JLINK-J-LINK-ULINK2/2038809478.html
It's quite tight fit, so may require using sandpaper here or there. Mine didn't ;)
Latches are protruding substantially, so PCB must be forced hard to snap in place.
Cover is glued on. Don't use nylon or other materials that are difficult to glue together.
Please note that chassis is made to fit my another project, i.e. JTAG-lock-pick tiny 2.0 programmer chassis (see pictures).
