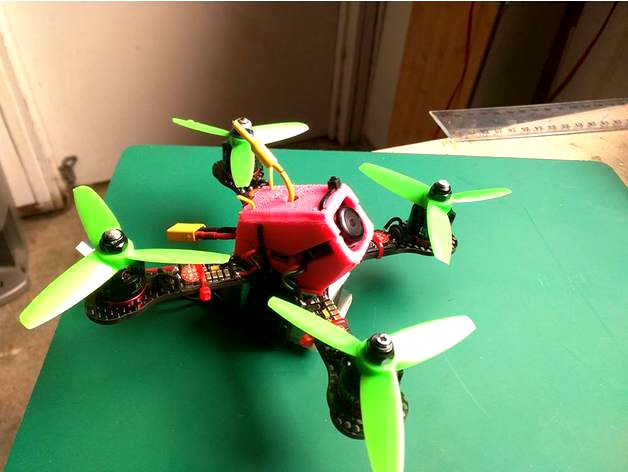

Jellybean Licorice by jbalat

Last crawled date: 4 years, 11 months ago

This 130 size Drone was designed by Derek specifically for taking lots of abuse in the car park. While the ABS frames are pretty good Derek always seems to keep breaking them. This frame is carbon 2.5mm - 3mm. I have included the DXF. We got some cut by Bezerk RC for a pretty good price. We still use the red bottom emax 4000kv 1306 motors with 3 inch gemfan props. The Cicada 12A escs or the smaller Spedix 20A BlHeli-S escs from Multirotor shop. The CCD 1000TVL camera from Banggood and the new tiny Eachine 25/50/200 switchable VTX. The tiny Emax Femto Flight controller and a small Receiver. Derek has installed a super short 1.8 lense from surveilzone with IR block. 450mah Tattu or Joos batteries with XT30 connector. So far he has not managed to break the frame or ABS pod however he has dislodged several magnets from his motors with the hard crashes.
