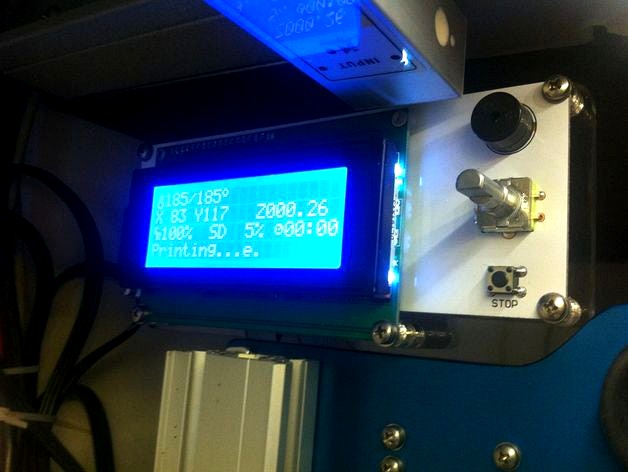

This panel mounts RepRap Discount's Smart LCD Controler to the header panel of the Ord Hadron.
I used the basic idea of another Ord LCD mount panel (see the remixed from section), but drew a new one with tighter perimeter edges, standoff spacers, added a hole for the contrast adjustment pot, added rounded corners, notches for the cables and support standoffs for the lower edge of LCD panel.
Photos should be coming soon.
I used the basic idea of another Ord LCD mount panel (see the remixed from section), but drew a new one with tighter perimeter edges, standoff spacers, added a hole for the contrast adjustment pot, added rounded corners, notches for the cables and support standoffs for the lower edge of LCD panel.
Photos should be coming soon.
