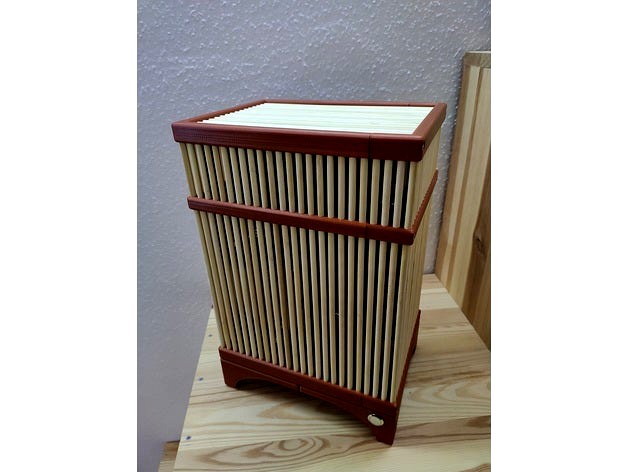

ITX Computer Case Bamboo Tower by crazyotork

Last crawled date: 4 years, 7 months ago

My new designed ITX computer case "Bamboo Tower".
I printed the Case in PETG, no temperature problem. (PLA not tested)
The case is completely ready to print.
I am currently working on the 380 ° dust protection.Will be usable as an extension to this case.Presumably even without having to print the existing component again.
Used PC hardware:
MB: AsRock H87M-ITX (4790K)
VGA: EVGA 1070 SC Gaming (ACX3.0 Designe)
PSU: EVGA SuperNOVA 550 GM SFX
CPU Fan: Noctua NH-U9S
Case Fan: Noctua NF-A9x14 PWM 4-Pin
You need.
Inner frame:
Aluminum flat bar: 4x 40mmx3mm (for my 1070 4x 280mm)All dimensions for holes see pictures
24x countersunk head screw M3 x 12mm
24x nut or self-locking nut M3
PSU:
2x 6mm PSU screw
1x C14 panel mount socket
1x C14 angle cable, 300mm (angle orient yourself to your power supply)
2x countersunk head screw M3 x 16mm (for C14 panel and cap)
SSD:
One SSD:
4x countersunk head screw M3 x 8mm
Two SSDs:
Print Two SSDs holder
4x countersunk head screw M3 x 8mm
8x countersunk head screw M3 x 6mm
MB:
4x standof 6,5mm (i use 6mm standoffs and 0,5mm washers)
4x screws for the mainboard
Case Fan:
4x 14mm Case screws
VGA:
2x countersunk head screw M3 x 16mm (for card holder)
Bamboo shell:
Bamboo round pole 6mm
6x countersunk head screw M4 x 60mm
Standing foots:
16mm Steel button (amazon.com/-/de/dp/B00XVJ9M9C)
4x countersunk head screw M4 x 20mm
4x countersunk head screw M4 x 16mm
Printer: Anycubic i3 Mega
Material: "Das Filament" PETG
0.2mm
no support
