Ironworker Arm Pin (Uni-Hydro 42-14) by jamesstaylor

Last crawled date: 4 years, 7 months ago

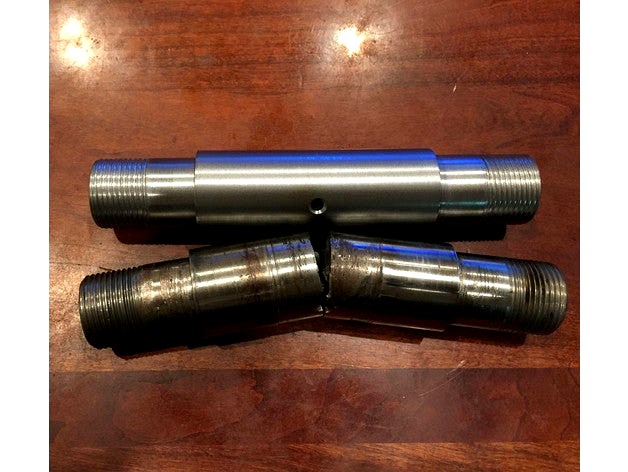

I acquired a Uni-Hydro 42-14 Ironworker that had a snapped lower arm pin. This is the model for the replacement I machined, I also included the process sheet. I can't imagine that this will be of any value to anyone, but you never know.
As always, I have included the native SolidWorks file as well as STL, STEP, and IGES files.
