Internal & External Gear Example by dreyfusduke

by Thingiverse

Last crawled date: 4 years, 11 months ago

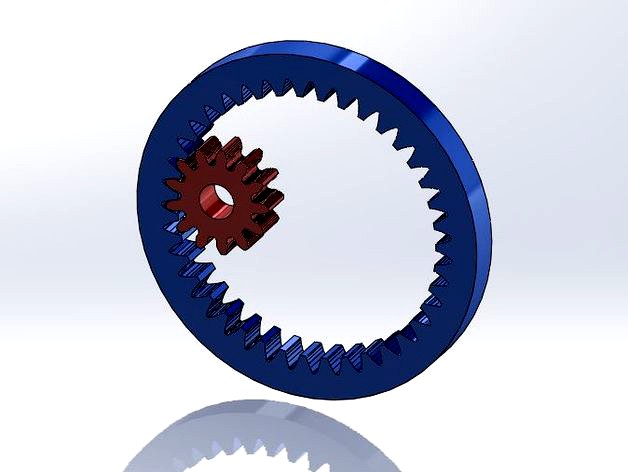

Internal spur and External spur gear example.
1/3.0 gear ratio
Module = 1.0
Center distance = 13.088
Pressure angle = 20 degree
