Internal Combustion Engine Anamation by 1-prop-head
by Thingiverse
Last crawled date: 4 years, 1 month ago

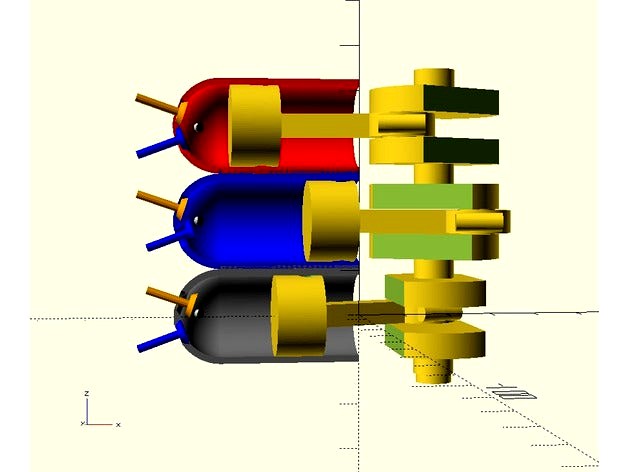

This is a three cylinder engine animation done in OpenSCAD .
The was done to observe the internal operation of Boyer ignition as install on a Triumph Trident motorcycle. Since all cylinders are sparked at the same time I was interested in visualizing the various cycles of the engine that were subjected to the extra sparking.
OpenSCAD settings for animation
Select from the main menu bar "View / Animate"
Below the compose window are three dialog boxes that need values:
Time: blank
Fps: 1
Steps: 24
This will start the simulation by iterating through each of the 24 different crankshaft angles defined in the R array (rotation)
