Revised to v1.3- drip tray added to help prevent leakage. Bolting arrangement amended. Walls made thinner.
Revised up to v1.2- gave it a tidy up as regards reducing its boundary size, initially i just revised one of my larger sized templates. added a recess in each end to allow a screw driver to be used to prise the templates apart. rounded the corners to aid in it sticking to the build bed.
http://youtu.be/OaK46BK0zEY

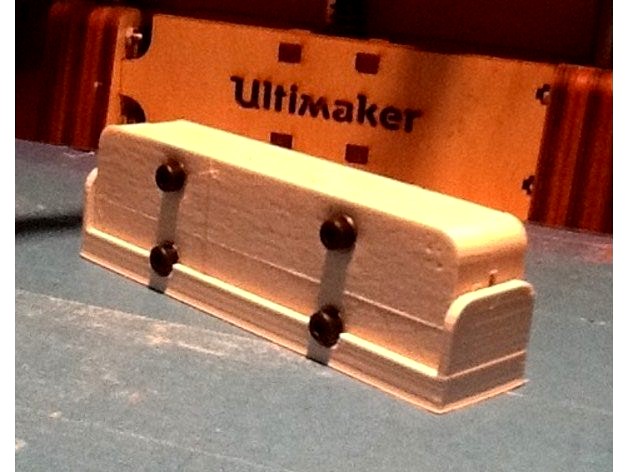

This was a request based on a previous model, to suit the Omnimac dampener M3 9mm x 13mm long. i have not used the cast myself, so any feedback is appreciated. i think the flanges could be too small.
This is Based on the vibration dampening balls i already use , used on multicopters to isolate vibrations to the gopro camera range (will work with others).
its a rough design, i will comeback and tidy up the design of this, once i get chance.i would like to have it hinged and a few other minor tweaks to make pouring the silicone in to the mould easier
bolt the two parts together with m3 bolts, don`t over tighten.
mix up your silicone and catalyst and pour.
i used 30g of rtv 2020 silcone/catalyst as a guide of quantity
checkout how to make the rtv silicone mix on google etc, there is plenty of info on there, you can see from my attempt, that i had too much air get in, this was totally my fault due to it being my first time using this silicone mixing. i know my next attempt will be far better, now i know what i am doing!
i used medium hardness silicone as a guess, i have not tested it in anger yet but i will get round to it shortly.
