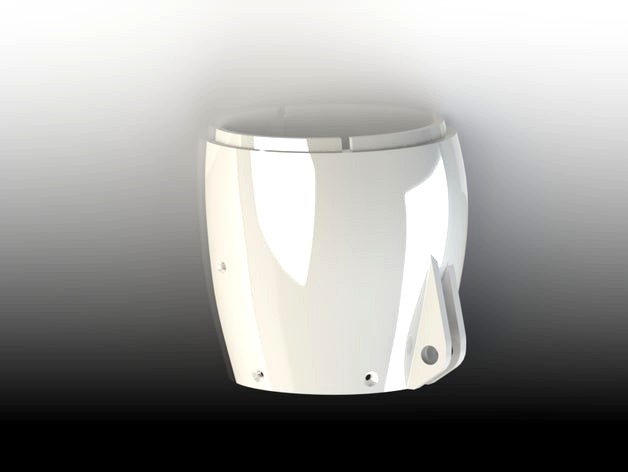

Remix of Anar's awesome InMoov forearm parts.
Forearm_R_RobPart2V2. This version carves back the lip to allow assembly, otherwise you can't slip on the cover.
Forearm_R_RobPart4V3. This version has the two missing RobCap mounting holes, and I also smoothed out the bicep pivot.
Forearm_R_RobPart5V2. This version has a notch carved out of the lip, no longer interferes with RobServoBed, and Mounting holes have been lowered by 1mm for a better fit with the top cover.
Forearm_R_rotaWrist1V2. UPDATED! This version has the wrist servo recess deepened. Also, the servo mount holes have been moved in to match the Servo.
Forearm_R_Wristgears3b reduced diameter of horn by 0.15mm to allow mount through rotowrist2 and rotawrist3
Forearm_R_rotaWrist2V2 servo head aligned from the mounting hole in rotowrist2
2014-10-25: added wristgears3b, rotaWrist2v2
