Inflexible Bracket by Norwegian1
by Thingiverse
Last crawled date: 4 years ago

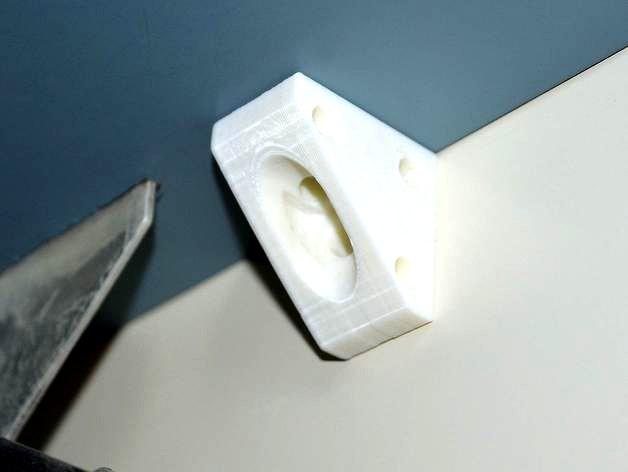

A simple inflexible, sturdy and solid small bracket usable for many purposes. Can take a good amount of weight. The screws will probably rip out from the wall before the bracket itself breaks. Printable without supports, so no wasted filament. It is a very simple item, but thought was put into the details for making it work well.
It is 30mm (1.811in) x 30mm and 20mm (0.787in) wide. Slot allows drillbit to fit for driving in the screw all the way, no need to fiddle around with thin manual screw drivers to get it in there. First version had little tool access, so I made a revised version with a nice wide slot in it.
Screws I used were 3mm x 15mm T10 countersunk screws, but whatever you have that fits will fit.
It is 30mm (1.811in) x 30mm and 20mm (0.787in) wide. Slot allows drillbit to fit for driving in the screw all the way, no need to fiddle around with thin manual screw drivers to get it in there. First version had little tool access, so I made a revised version with a nice wide slot in it.
Screws I used were 3mm x 15mm T10 countersunk screws, but whatever you have that fits will fit.
