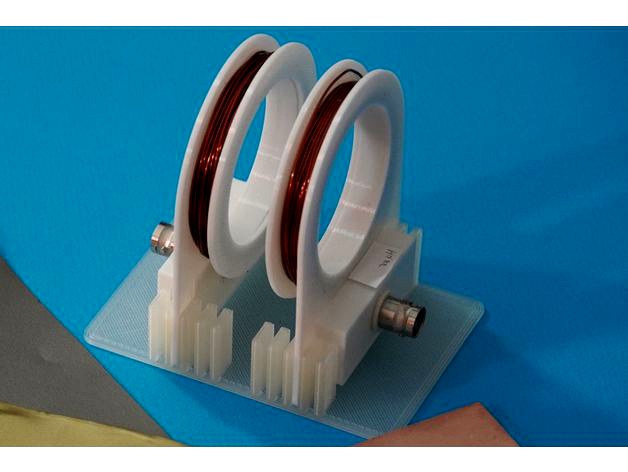

This is a support built to uphold 2 inductors.
To assemble it the component marked 00 needs to be printed one, and components 01, 02 and 03 need to be printed twice and glued together.
Each inductor is finished by using wire and BNC connector.
The distance between the inductors can be varied based on how the inductor assemblies are placed in the "00_base" component.
More info about how the coils can be used in the video below:
