Imagine That Titian/Atlas, Creality CR-10, Afinibot A31 Print Cooling by Mk42Workshop
by Thingiverse
Last crawled date: 4 years, 5 months ago

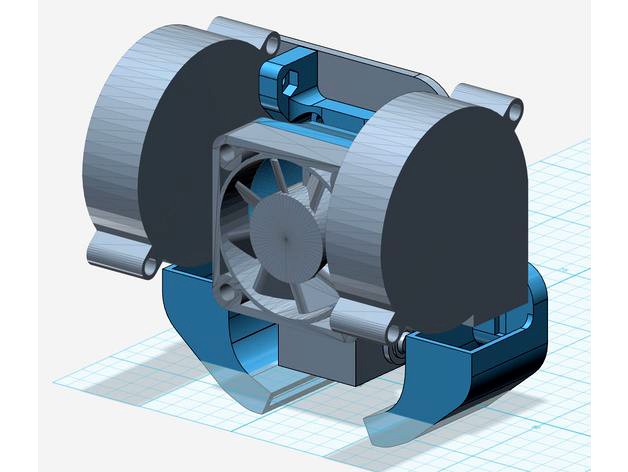

Do you want your part cooling fan to blow the debris off your print bed? Or do you want a strong, flow from at least 2 sides? Do you have a Imagine That Titian/Atlas, Creality CR-10, or Afinibot A31? Well friend, I've got the set-up for you! I didn't use no new fangled CFD programs or nuthin, but I meditated and tried to think like air. Then I over did it. That's even better.
Download the extruder cooling duct here:http://www.thingiverse.com/thing:2184575
It is nice and compact and raises up the fan away from the heat block.
Additional parts:
2 - 50mmx15mm blowers
2 - M3x20mm socket head bolts (attach the blowers to the bracket/duct)
2 - M3x10mm socket head bolts (attach the bracket to the extruder carrier)
2 - M3 nuts (attach the blowers to the bracket/duct)
