Jig I found were not correctly sized, so I decided to draw a correct one. Printable on any 22 or 23cm bed size.

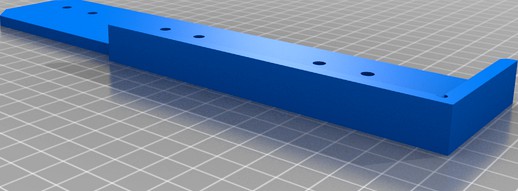

Left and Right Jig for installing custom front on Ikea Maximera/Exceptionell drawers
Your front should be cut with -0.7mm than the cabinet size ( eg , 4040 front should be cut at 39.339.3 )
Hole are at 33mm from the side
The pattern is from bottom to top :
40mm - 20mm - 60mm - 20mm - 50mm - 20mm
Designed with OnShape, you can fork my design here :https://cad.onshape.com/documents/ba5725f6b7cc334f2180c001/w/4571c7c8b9355e24b17f2c59/e/811ab96641f8d3ca3b8f620f
