Hypercube Evolution - HEVO Fusion RC - Piezo 27mm Mount by otaku521
by Thingiverse
Last crawled date: 4 years, 12 months ago

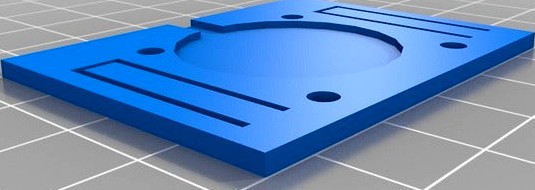

This is the 27mm Piezo Disc mount for the upcoming all Aluminium HEVO SML Fusion RC upgrade Kit
It works with both Precision Piezo Piezo 20 and Universal PCB (Also with the TriangleLab Z Piezo PCB as well)
it is for 27mm Piezo as it is more sensitive than 20mm ones.
It is to be mounted on the MGN15H mount on top of the Aluminium Hotend/Extruder Mounts
Design with TinkerCad:https://www.tinkercad.com/things/kC8TdYRguhE-hevo-sml-27mm-piezo-plate/editv2?sharecode=_77z-n0Nrz_ASzmqffpRU-Tr07xbymG-yHdVkcH_OQQ=
