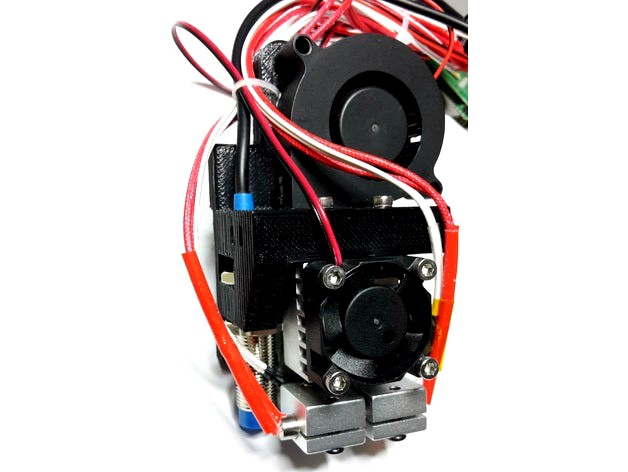

Hypercube Evolution Chimera mount with inductive sensor by Bitsize

Last crawled date: 4 years, 8 months ago

I couldn't find a Chimera mount on Thingiverse that functioned correctly with the normal 300x300 dimensions of the Hypercube Evolution in combination with the standard inductive sensor supplied by Lin. I placed the Inductive mount within the boundaries of the x carriage so it wont hit against the z rails. This made the structure a little weak so I reinforced it with some extra plastic on top. I also sacrificed one of the mounting holes of the fanduct, but it don't seem to be needed for support. Modified fanduct is also included. Fanduct is not the prettiest of models but it prints correctly. Make sure the cables for the heater elements don't hit into your Z rail holder and tie everything up nice and tight.
