Hypercube Evolution 2020 by martind_n
by Thingiverse
Last crawled date: 4 years, 1 month ago
Here where I live is almost impossible to get 3030 extrusion, so I come up with this remix in order to build HyperCube Evolution on 2020 extrusion.
The missing parts shall remain the same as the ones posted by Scott.
Design is for 8mm linear rail on both X and Y.
I didn't print it yet since I'm still waiting my extrusions to arrive, so if you find any error, please let me know.
UPDATES

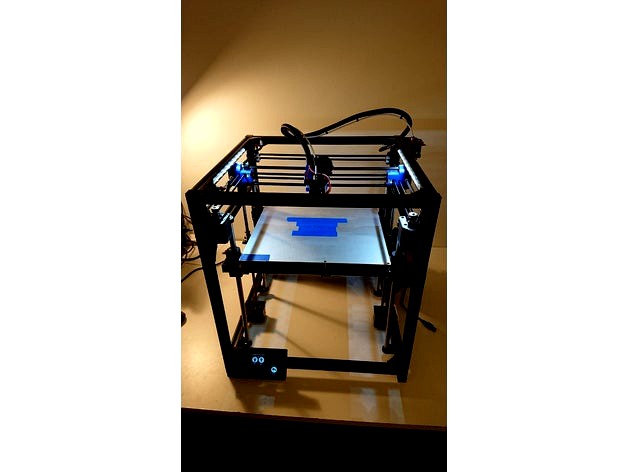

05-Sep: Finally all the parts have been printed and fits smoothly on 2020 profile. Original desing by Scott for Z nut holder fits fine also.18-Sep: Idlers for 10mm rod. Modified Y endstop bracket to fit better with endstop flag. New Extruder mount to fit both min and max opto endstop. Files for 8mm Z rods.13-Dec: Well, after a long time I finished the printer a coule of weeks ago. New pictures are available in order to check the whole remix from the original HEVO.
I added a TFT32 controller + MKS WiFi module. Also, in the same enclosure I added a couple o LED to indicate when either E0 or the Heatedbed are working. All the desings for the parts I'm using are available for download.
Also I attached two led stripes that can be turned on from MKSTFT32 and a runout filament sensor to help avoiding run out of filament during long printings.
It's fair to mention I remixed the spool holder from @bliatun (https://www.thingiverse.com/thing:2084843) and @rowokii (https://www.thingiverse.com/thing:767317).19-Jan: Redesigned Extruder Mount. The problem I found with the original version is that the brass knurled inserts are not attached strongly enough to the plastic, so once you start tigthening the bolts, the inserts start poping out. In this new design, the inserts were placed at the back of the piece, so you can tight the screws as much as you want with out any issue.3-May: The mods continue... Added new electronics, MKS Sbase 1.3 with its mount bracket (available for downloading). My Hevo2020 has a new Drakon Extruder by @AxMod3DPrint (https://www.thingiverse.com/thing:2172854) this was needed to get a smoother flow on the filament, without it, the extruder motor was skipping some steps, so I decided to add a geared extruder to avoid so... Also added cable chain for X and Y axles (still pending in Z). Cable chain desing by @lamturbo (https://www.thingiverse.com/thing:2823973). Also the mods for dual extrusion have began, keep you posted!31-May: Dual extrusion! After a lot of tweaking (fighting) against SW and HW, I could finally get my HEVO 2020 Multimaterial. I added a TL-Feeder and after a lot of testing and filament wasting it now works like a charm. Also, I also added a new filament sensor that fits Drakon Extruders.26-Jun: Tired of fighting with capacitive sensor for Z-Probe, decided to change it for mostly flawless TLTouch (BLTouch clone). Mount for this piece just fits the place for inductive sensor without needing to change any part already printed.
That's all folks...(?)
