HyperCube 3D Printer Accessory Pack by Tech2C

Last crawled date: 4 years, 8 months ago

Optional extras for the HyperCube 3D Printer.https://youtu.be/o3PU-MJzh98

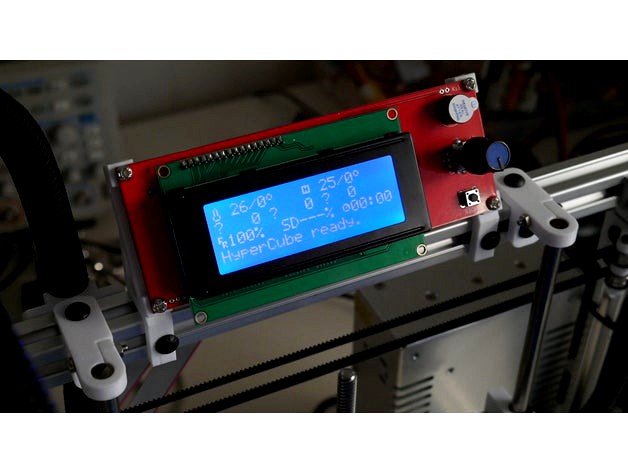

RepRap Discount Smart Display Mount (Print 2 of them)
Mount anywhere on the frame where the LCD + SD cables reach.
Requires:
4 x M5x10mm button head screws
4 x M5 T-slot nuts
4 x M3x10mm screws
4 x M3 hex nuts
X-Carriage Cable Mount
Install on the top rear left of the frame. There is a channel for a cable tie to affix a cable loom of up to 16mm in diameter.
Requires:
2 x M5x10mm button head screws
2 x M5 T-slot nuts
1 x 100mm cable tie
Stepped Spool Holder (Print 2 of them)
Each spool holder accepts 2 x 608 bearings. This ensures the spool holder is always vertical with the spool.
Requires:
4 x 608 radial bearings
RAMPS Mount
A bracket to support the Arduino Mega 2560 and RAMPS 1.4 board to the bottom rear left of the frame. Cable management on the rear of the bracket allows excess cable length to be wrapped around neatly.
Requires:
3 x M5x10mm button head screws
3 x M5 T-slot nuts
3 x M3x25mm screws
3 x M3 hex nuts
BIGTREETECH SKR v1.3 Mount
A bracket to support the SKR v1.3 board to the bottom rear left of the frame. Cable management on the rear of the bracket allows excess cable length to be wrapped around neatly.
Requires:
3 x M5x10mm button head screws
3 x M5 T-slot nuts
3 x M3x10mm screws
3 x M3 hex nuts
Power Supply Mount
A bracket to support the 12v 30A power supply to the bottom rear right of the frame.
Requires:
3 x M5x10mm button head screws
3 x M5 T-slot nuts
3 x M4x10mm screws (thread of the power supply chassis)
2 x M3x10mm countersunk screws (for power socket)
2 x M3 hex nuts (for power socket)
1 x Power Supply Socket - Fused
