HTC Desire 816 case by PMar
by Thingiverse
Last crawled date: 4 years, 7 months ago

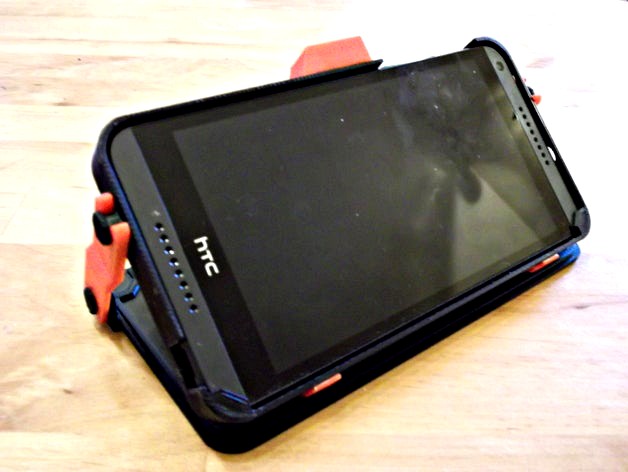

This is a case for bulky but useful HTC's Desire 816 phone.
Features:
Sliding cover,
Table stand (with addon_to_view)
Standard camera stand socket (with addon_std_stand_req_nut, this requires 1/4" UNC nut)
Print case_back and case_cover, print two cover_connector & connect case_back and case_cover (see pictures).
Table stand addon (addon_to_view) x 2 needs to be glued on to case (for ABS use acetone, for PLA use butanon - be careful with chemicals!).
Standard camera stand socket requires a stop in printing process (just when socket is finished around 7,5mm height) to insert in socket a 1/4" UNC nut (tight fit - may need force to insert). Also requires glueing to case.
Features:
Sliding cover,
Table stand (with addon_to_view)
Standard camera stand socket (with addon_std_stand_req_nut, this requires 1/4" UNC nut)
Print case_back and case_cover, print two cover_connector & connect case_back and case_cover (see pictures).
Table stand addon (addon_to_view) x 2 needs to be glued on to case (for ABS use acetone, for PLA use butanon - be careful with chemicals!).
Standard camera stand socket requires a stop in printing process (just when socket is finished around 7,5mm height) to insert in socket a 1/4" UNC nut (tight fit - may need force to insert). Also requires glueing to case.
