How to model and 3D print hose adapters (in Onshape, with templates) by evanandkatelyn

Last crawled date: 4 years, 7 months ago

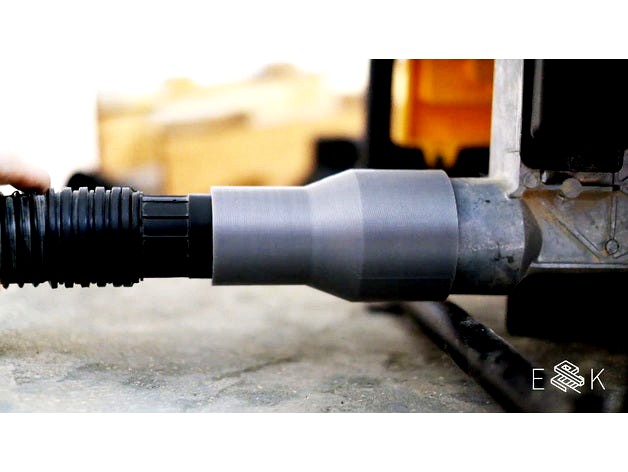

There are two great vacuum hose adapters that are tied into the customizer but I wanted to make some shapes that were even more customizable. Onshape (which is cloud based CAD software) is free to use for public files so I thought that would be the best software to use. I made some templates:
4” m to DW straight reducer https://goo.gl/flzXUD
4” f to DW straight reducer https://goo.gl/kEJYsq
1.875” f to DW straight reducer https://goo.gl/2HKPRN
1.875” f straight coupling https://goo.gl/g93fjr
1.875” m straight coupling https://goo.gl/GgjqWr
1.875” f elbow coupling https://goo.gl/HUqKgb
And also made a video showing how to modify the templates and how to model a hose adapter from scratch:https://www.youtube.com/watch?v=b-8ZF1DM4_E
If any one needs any more templates or shapes, please let me know and I'll try to keep the list up to date. Have fun!
