How To Model a Tire for 3D Printing in Blender by ricswika
by Thingiverse
Last crawled date: 4 years, 7 months ago

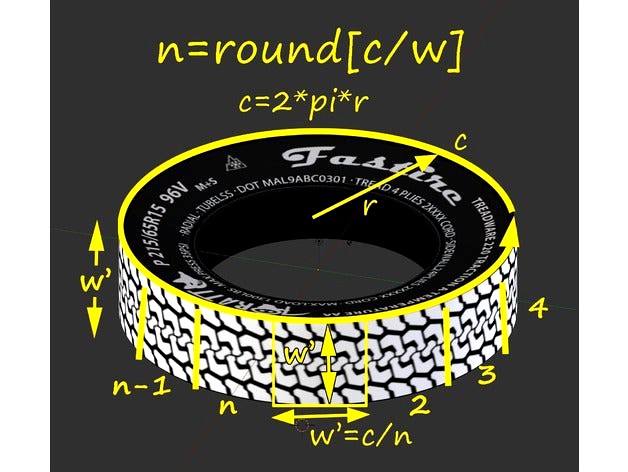

Here is a detailed tutorial on using Blender to model a tire by using image-based displacement mapping for surface texture. You can use this same workflow for any cylindrical shape. I also show how to bisect the model for better FDM printing and how to add holes for guide pins.https://youtu.be/JCVcxZe2awc
The project includes the blender source files with the image maps packed inside. The second blender file has the tire bisected for FDM printing, as shown at the end of the video.
I also posted .stl files you can just print.
Use filament scraps about 1cm long as registration pins to join the bisected tire.
Please post your own tire design makes and "LIKE" this project if you find it useful.
For an introduction to this technique, please see:https://www.thingiverse.com/thing:2841201https://youtu.be/3Zms6K9LxMQ
