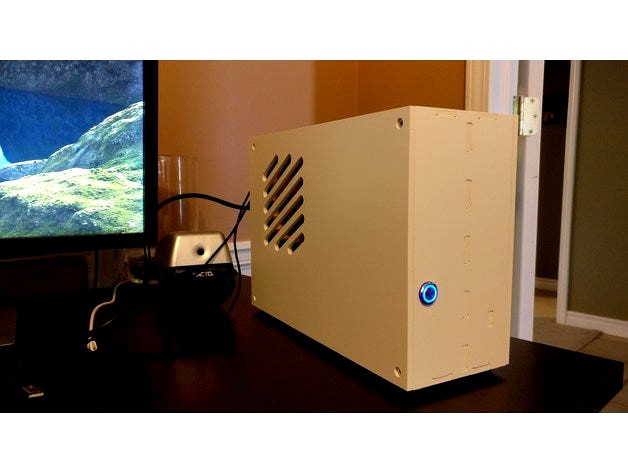

HeroicMoose Mini-ITX case - full size graphics card by HeroicMoose
by Thingiverse
Last crawled date: 4 years, 8 months ago
These are the files for the Mini-ITX case I designed.
This one was actually made with a MPCNC, but hey 3Dprinting works also if you wana break the pieces apart to fit your printer size.
How to Videohttps://youtu.be/R9Pt4kGhmt8
Mini ITX
Noctua 94mm x 14mm fans at the bottom
Noctua NH-L9i cpu cooler
5mm standoffs for the motherboard
side panels use M4-0.7 12mm screws and the nut holder fits M4-0.7 Hex Nut
HDPLEX 400w hifi DC-ATXhttps://www.hdplex.com/hdplex-400w-hi-fi-dc-atx-power-supply-16v-24v-wide-range-voltage-input.html
10mm standoffs for the graphics card extender
9CM PCIE extenderhttps://www.amazon.com/EZDIY-FAB-Express-PCIe3-0-Flexible-Extension/dp/B01CEKN5VO/ref=sr_1_fkmr0_1?ie=UTF8&qid=1521868621&sr=8-1-fkmr0&keywords=9cm+pcie+extender
16mm power switchhttps://www.amazon.com/KNACRO-Chassis-Switch-computer-restart/dp/B0787L4P3F/ref=sr_1_3?s=electronics&ie=UTF8&qid=1521873156&sr=1-3&keywords=16mm+pc+switch
