Headless Gourd Shaped Pocket Size Ukulele for 200mm Printers by Big1
by Thingiverse
Last crawled date: 4 years, 4 months ago
Some has asked me about how to print my gourd shaped ukuleles (e.g. http://www.thingiverse.com/thing:1868201) on smaller printers as the unibody design requires delta style printers that can print the unit vertically with ~500mm height and 200mm x 100mm on the X-Y plane.

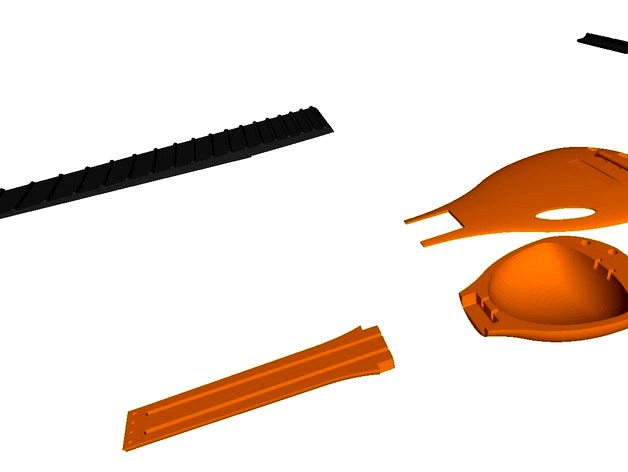

Although the use case of accommodating smaller printers are anticipated in my Gugulele scripts (https://github.com/bguan/gugulele), it may be unclear to casual users how to drive the parameters to make it happen. So I have generated this pocket sized ukulele model (scale length 280mm ~11") to make it possible to print on printers with Print Size ( X Y Z ) of at least 200mm x 200mm x 50mm, and model is to be printed in a horizontal fashion.
The pieces are to be glued together. Through body grooves are there for 2 carbon fiber rectangular rods (e.g. http://www.acpsales.com/.125-x-.325-Rectangular-Rod.html) to counter the strain from string tension. The tuner holes are placed at the tail end, with design that can is compatible with most ukulele and guitar tuners ranging from $5 to $50 units, but some rimming may be necessary.
I haven't printed and made this particular model yet, so please let me know if you've made one and succeeded.
