Headlamp Mount for Aluminum Extrusion

Last crawled date: 6 years, 1 month ago

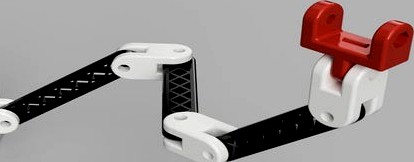

This is a 2 axis mounting arm I designed for a 3d printer work light. The headlight is one I found on amazon a while back. The design was meant for the original hardware from the headlamp and some #10 24 x 3/4in machine screws. I everything was printed in pet-g. I will update the post with pictures of a completed build once the printing is done. It was intended to be mounted on the backside of the top right corner, but it can be used anywhere there is a corner.
Print quantities:
-3x universal joint
-3x 3in arm
-1x mounting bracket
-1x extrusion mount
*You can always print more to increase the length if needed.
