Handy Console frame for WaveShare GamePi20

Last crawled date: 5 years, 11 months ago

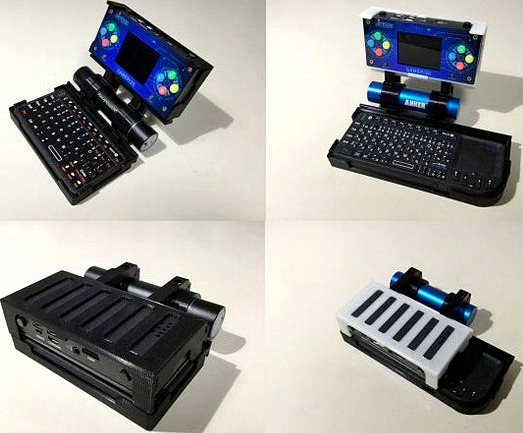

This THING was prototyped to use WaveShre GAMEPI20 as a handy console.
Requires GamePi20 and Bluetooth mini keyboard.
If you have a cylindrical mobile battery(Dia.=23 or 22mm), please add it, as it is useful for increasing the operating time.
(GamePi20 has a built-in lithium battery, so an additional battery is not absolutely necessary.)
If you don't need a cylindrical mobile battery, substitute a cylindrical part output by your 3D printer.
There are many types of BlueTooth mini keyboards.
I tried the following RiiTek products.
You will find many similar shapes and sizes.
Please refer to the photos for how to assemble.
requirement
WaveShare GamePi20https://www.waveshare.com/gamepi20.htm
-BlueTooth mini keyboard
Riitek mini Bluetooth Keyboard Rii Slim RT-MW518,
Riitek Rii mini Bluetooth keybord RT-MWK02, Ewin Mini Bluetooth keyboard+touchPad
or similar.
-M2.6, 10mm Bolt&Nut
4 pairs.
-cylindrical shaped mobile battery[Dia.=23mm or Dia=22mm]
Anker PowerCore+ mini (Dia.=23mm)https://www.ankerjapan.com/category/BATTERY/A1104.html
or similar.
Mobile Battery Kit [K-RBK1C1U-NS] (Dia.=22mm)http://www.aitendo.com/product/12459
or similar.
CAD files;
gp20btks33.stp [STEP format]
gp20btks33L.stp [STEP format]
STL files;
gp20btks33_gp
gp20btks33_kb2
gp20btks33_p1
gp20btks33_p2s
gp20btks33_p1_ai
gp20btks33_p2s_ai
gp20btks33L_kb2
gp20btks33L_p1
gp20btks33L_p2s
gp20btks33L_p1_ai
gp20btks33L_p2s_ai
pv01
---update[12/26-2019]---
Added retaining clip parts.
These are parts to prevent the keyboard and GamePi20 from sliding and shifting.
CAD file; gp20btks33_clip02.stp [STEP format]
STL files; gp20btks33_clipkb.stl , gp20btks33_clippg.stl
