Hammerhead Karoo 2 Mount blank by acwalter
by Thingiverse
Last crawled date: 4 years, 5 months ago
https://www.thingiverse.com/thing:4790179

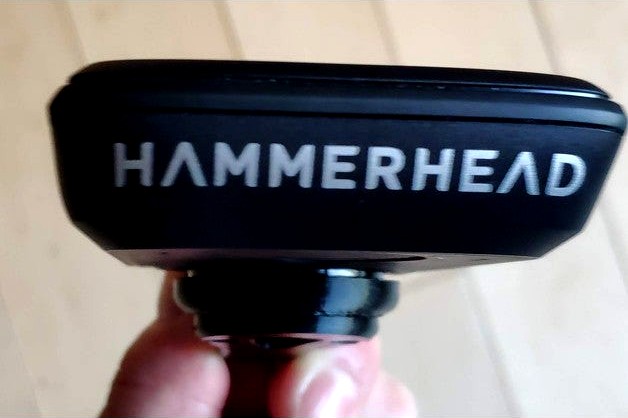

Working on a custom mount for the Hammerhead Karoo 2 to mount directly to Vision aero bars. The factory clip can be unscrewed and then screwed into this blank. You may need longer screws than the factory ones. The factory clip fits really well but can use some tightening up of tolerances. There is no bike connection in this design, you need to add that yourself.
I'll continue to update, Hopefully, this helps you get started on a nice mount for yourself.
M3 x 8 machine screw
Added a few complete mounts for a Vision aero bar:
VisionBarHeavy is over designed and quite strong in generic PLA. I printed with 20% infill but added some 100% fill where it mounts to the bar up to the triangle cutouts. You will have to experiment to get the balance of strength vs. weight you want.
VisionBarLight is thinner and lighter but you need to be careful about how you infill. VisionBarLightFillbox can be used in Cura to add 100% infill where the box and the mount intersect. I am still testing this design so be careful. If the arms to the bar are printed in less than 100% infill they will break. Testing with PLA but will probably switch to PETG once the design is completed.
I recommend you use your tether to prevent dropping the hammer.
