Hakko Style PCB Vise by urill
by Thingiverse
Last crawled date: 4 years ago

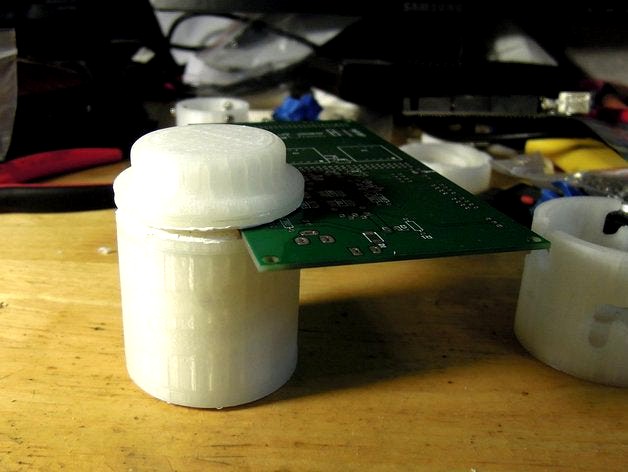

This is a portable and adjustable-height vise for PCB assembly and rework.
It is inspired by Hakko Omnivise C1390C.
Required hardware:
M8 hex bolt >= 20mm x1
M8 nut x1
M3 hex screw, countersink, 6 to 10 mm x6
M3 hex screw, socket cap, >=6 mm x3
M3 nut x9
It is inspired by Hakko Omnivise C1390C.
Required hardware:
M8 hex bolt >= 20mm x1
M8 nut x1
M3 hex screw, countersink, 6 to 10 mm x6
M3 hex screw, socket cap, >=6 mm x3
M3 nut x9
