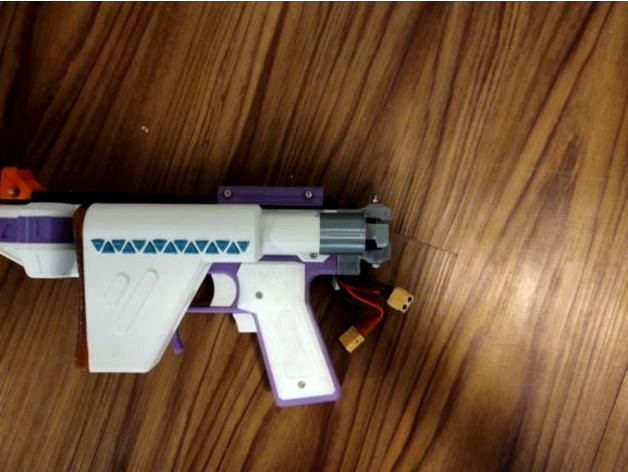

Based on Mussy's Folding Stock adapter.
Fitted for 3/4 Inch PVC (imperial units)
I gauged out the bottom horizontal grip hole to route wires out, however drilling a hole through the male piece would probably work better.
Print as solid as you can (3+ walls and triangles) I'm reinforcing mine with fiberglass resin.
For assembly:
Use a screw and spring to assemble the folding mechanism. cut pvc to length such that the buttstock friction fits and locks against the back of the motor cages
