Grove module mount by stuartm
by Thingiverse
Last crawled date: 4 years, 7 months ago

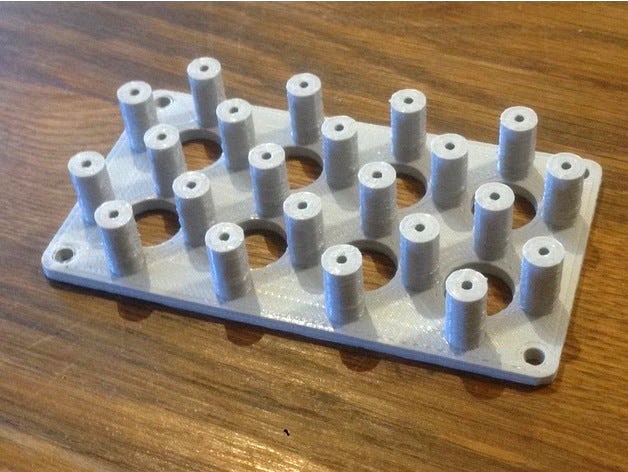

A simple 4x2 mount (customisable in OnShape so any size is possible) for Seeed Studio's Grove modules. Can be mounted to any surface using the 4 mounting holes. It's pretty flexible - I've drilled one of these to mount a NodeMCU Grove Shield on the rear with M3 standoffs.
The pegs are full height, allowing modules with rear connectors to be fitted. For a lower-profile, just stop your printer when it reaches the height you want. Unwanted pegs can be snapped off with a pair of flat-nosed pliers. Use No.2 x 6mm self-tapping screws to secure modules.
View the model on OnShape
The pegs are full height, allowing modules with rear connectors to be fitted. For a lower-profile, just stop your printer when it reaches the height you want. Unwanted pegs can be snapped off with a pair of flat-nosed pliers. Use No.2 x 6mm self-tapping screws to secure modules.
View the model on OnShape
