Gotek Amiga 1200 CASE MOUNTING by Gazza007
by Thingiverse
Last crawled date: 4 years, 8 months ago
Love My Amiga and there is NO WAY I'm going to cut the case up to fit in a Gotek drive.
Seen lots of ideas but not the one for me.

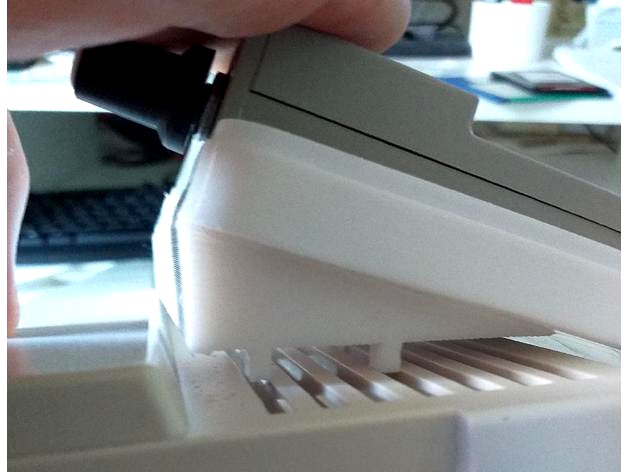

So I came up with my own idea on how to CLIP it to the 1200 with out damaging the case.
So you pick and choose your own case I just found that the 20 Deg slope works best for me !
Once you have your case (super glue is your best friend here ) yep just MAKE sure you can ACCESS the screw holes before Gluing
now then I have searched the web for hundreds of ideas and information on the Amiga rear disk drive for socket its 23 pin MALE plug socket if you cant find any make your own here
by Michal Jaskolski
https://www.thingiverse.com/thing:1238286
then to wire it all up I found some Du-Pont cables @30cm and made my own by cutting off 2 cm off one end to make a plug see Photo's
(Note we only need to connect to the TOP row of pins on the Gotek yep JUST THE TOP )
The wire diagram I have attached WORKS FINE... IF you damage your Amiga its your fault. if your not sure get some one to make it for you
As mine works ill leave it there but as many people want the real 2X floppy disk drive...
I'm in the process of making a cable that attaches to the inside and you BOOT up with Normal internal DF0 or Gotek Floppy
I'm making the cable as I up load this just waiting for parts to arrive..
ill make some up if any ones interested they will be hopefully a dam sight Cheaper than the ones on ebay that people are ripping off with a cable that's about £6 and a £2 switch and charging £17 plus ....
Any way think that's it any questions pleas ask
