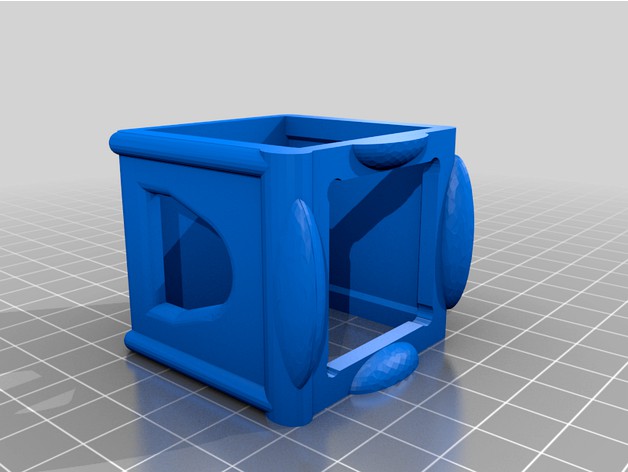

GoPro Session 5 Mount for iFlight XL7 & Screech with BotaFX/Bandalero style mounting using 20mm standoffs by nerdCopter
by Thingiverse
Last crawled date: 4 years, 6 months ago
Remixed GoPro Session Mount to fit my iFlight XL7 and Screech Freestyle.
Hardware needed: Two 20mm by 5mm aluminum standoffs, Four 3mm screws.
XL7 BotaFX/Bandalero style mount-brackets: https://www.thingiverse.com/thing:4862978
Screech Freestyle BotaFX/Bandalero style mount-plate: https://www.thingiverse.com/thing:4866128
revB was my first publish of this. it shows too much material in view left-right sides.
after printing a revC (not published), i noticed the angled face bumpers were not clean due to overhangs which were not print-supported. I had printed with pre-made supports so the rest was fair, beside my poor TPU skills. I also decided i would add a small slot near the mount point for a mini-strap to help retain the door. That said, i've always had some issue with my refurbished GoPro Session5's left-FOV seeing mounts. I decided i would redesign the face opening as well.
revD without supports - redesigned face-bumpers, top-bumpers, simpler face opening.
revD with supports - i printed this one and it came out nicely. the gaps are 0.24, so consider printing at 0.24 also.
The mount-point is slightly ugly, but perfectly matched to the mount-bracket linked above.
If you enjoy this, please "Like" or comment.
Please post "Makes".
Feel free to promote it using the attribution card.
Please consider subscribing to my Youtube.
All my works under the Creative Commons - Attribution - Non-Commercial - Share Alike license unless otherwise noted.
Free to print for yourself or your friends. Please do not commercialize without consent or agreement.
If this is a remix, please follow original designer's limitations as well.
