Glass bed corners with border and thermal insulation by Buszmen61
by Thingiverse
Last crawled date: 4 years, 8 months ago

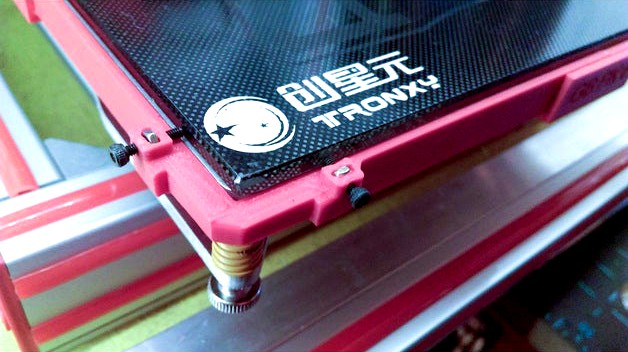

These are corners with a frame for fixing a 3 or 4 mm thick glass. Designed for a 220x220x3 mm hotplate (eg Anet A8 / A6) with 4-5 mm cork insulation on the bottom.
The study is based on the FT5 713 Glass Corner project
by davebpix https://www.thingiverse.com/thing:2702867 but converted to 2mm screws so you can use 3mm glass. The frames should be glued together with ABS glue (eg Tamiya 87137) or any acetone based glue. The sticking points must be reinforced with additionally glued connectors.
M2 screws:https://pl.aliexpress.com/item/32854553232.html?spm=a2g0o.cart.0.0.57e53c0013ViL3&mp=1
https://pl.aliexpress.com/item/33022099174.html?spm=a2g0o.productlist.0.0.4fec762dzFB7Uz&algo_pvid=3dd1ebd9-092e-4929-b3a8-3e9a64627bf3&algo_expid=3dd1ebd9-092e-4929-b3a8-3e9a64627bf3-12&btsid=2100bdcf16066955036681755efe4b&ws_ab_test=searchweb0_0,searchweb201602_,searchweb201603_
The study is based on the FT5 713 Glass Corner project
by davebpix https://www.thingiverse.com/thing:2702867 but converted to 2mm screws so you can use 3mm glass. The frames should be glued together with ABS glue (eg Tamiya 87137) or any acetone based glue. The sticking points must be reinforced with additionally glued connectors.
