Glass Alignment Gauge Blocks for Firebird / Camaro by grcvisuals
by Thingiverse
Last crawled date: 4 years, 10 months ago

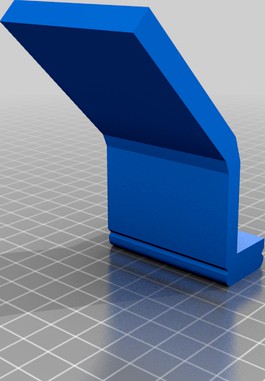

These are side window Glass Alignment Gauge Blocks for a 1970 - 1981 Firebird or Camaro. These are equivalent to the Kent Moore J23394-1 (Red) and J23394-2 (Blue) tools which are no longer manufactured. The smaller block is the Blue version and the larger block is the Red version. You will need two of the Blue blocks and one of the Red block.
The usage of these is as specified in the Pontiac/Chevrolet Service Manual for installing and aligning the window glass.
Note that there are two versions available here depending on what printing method is used. The files with SLS on the end are for printing through a service using Selective Laser Sintering (SLS) printers. The other files are for printing with a home based Fused Depostion Modeling (FDM) printer.
If 3D printing on an FDM printer, print each block on it's side to ensure structural integrity.
The usage of these is as specified in the Pontiac/Chevrolet Service Manual for installing and aligning the window glass.
Note that there are two versions available here depending on what printing method is used. The files with SLS on the end are for printing through a service using Selective Laser Sintering (SLS) printers. The other files are for printing with a home based Fused Depostion Modeling (FDM) printer.
If 3D printing on an FDM printer, print each block on it's side to ensure structural integrity.
