Generic card holder (FreeCAD parametric) by kvrb
by Thingiverse
Last crawled date: 5 years, 1 month ago

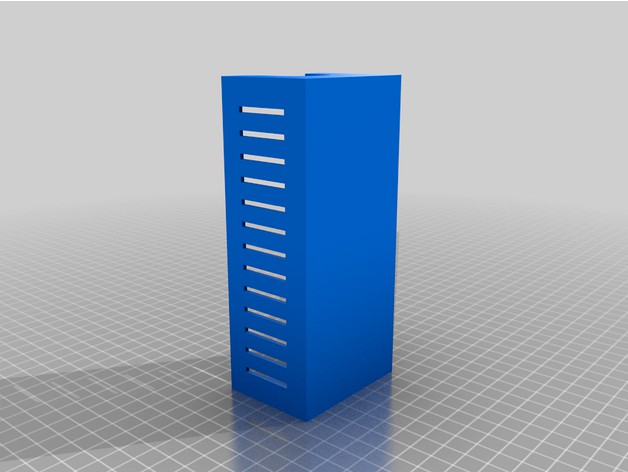

The STL files are a sample of a parametric design in FreeCAD of a holder and divider for the storage of cards (60x40 mm in this case). Multiple dividers can be slotted into the holder to divide the box as you see fit.
The FreeCAD project is included. To make a holder and divider fitted for your purpose follow these steps:
open the project in FreeCAD (duh)
open the Spreadsheet of the project
define the width (1) and height (2) of the cards (in mm)
optionally define the thickness of the stack of cards and in how many types they will be split (this will calculate a minimum size lower in the spreadsheet)
define the box size (3), either take the minimum for your card stack or define your own value
export both the holder and divider as STL files and start printing
Make sure to lay the holder flat when generating GCode.
