GCode Print Simulator by mdietz

Last crawled date: 4 years, 7 months ago

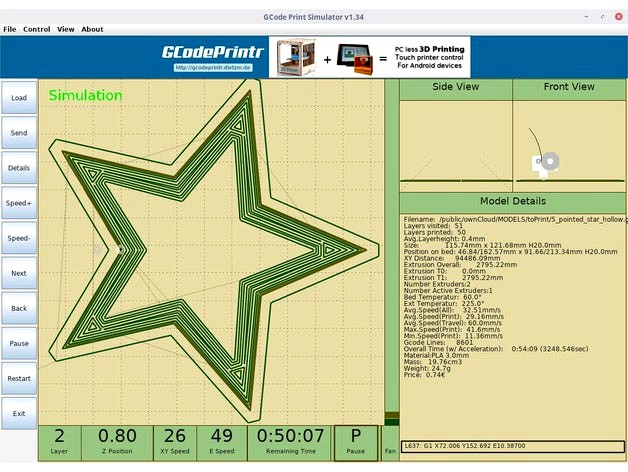

This application can visualize Gcodes and simulate a real 3D print.
GCode Simulator recognizes the print speeds and can simulate the print in realtime, but you can also speedup the prints (fast forward,slow motion). Each layer is painted in a different color to see how a layer overlaps with the layer below.
GCodeSimulator Home page: http://3dprintapps.de/
Video of GCodeSimulator in action: http://www.youtube.com/watch?v=i1SY2N21EDQ
GCodeSimulator let you to check how your print should turn out, making it easier to spot errors and fix them instead of wasting filament. If the print object looks ok you can directly send it over Wifi to GCodePrintr (Android) to print it.GCodePrintr - 3D Printing for ANDROID availableAllows real 3D printing from an Android devicehttps://play.google.com/store/apps/details?id=de.dietzm.gcodesimulator
In addition GCodeSimulator analyses the Gcode file and prints additional information like:
It calculates various print details like
-print time
-used filament
-yx move distance
-print object dimension
-average print speeds
-number of layers
-layer details
-speed distribution / Acceleration
-weight and price of the printed object
-much more ...
It also allows to debug your gcode by stepping through it line by line and show the results. (debug mode)
Developed for my reprap printer but works with other printers (e.g. makerbot, ultimaker,...) as well, tested with Silc3r and skeinforge gcodes.
Download the latest Version V142
