GBS-8220 case by skovik
by Thingiverse
Last crawled date: 4 years, 3 months ago

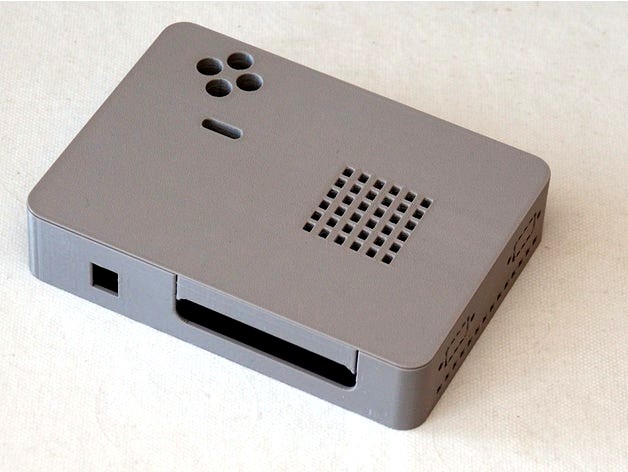

This is a complete box for the GBS-8220 converter.
Improvements:
-wider version
-added side cutouts for Canon 15 or Canon 9 connector, due to the possibility of adding another video input or output connector,
-operation indicator - light tunnel for a diode
-bigger and nicer control buttons
-better designed cooling holes
-additional mounting holes from the bottom of the upper lid add the possibility of installing another additional board with electronics (eg inverter board for CGA inverted signal)
-added cutout for on / off switch
Printing instructions:
The height of the layer is arbitrary, as is the material. PET-G material is suitable for flexibility, however, it can be printed without problems from ABS or PLA.
The light tunnel model for the diode (GBS-diode) is suitable for printing with transparent plastic, either PET-G or ABS. If you then rinse the ABS in acetone, you have a beautifully transparent tunnel.
The buttons are a little better to print from PLA, because the text on the top is better printed than from PET-G, which can string. It is recommended to use text printing in a different color and background printing also in a different color - ie. add a filament color change in the layer where the letters on the buttons are printed.
In case of feedback, please write to me in the comments to the model.
