FX BOX PCB Template
by Thingiverse
Last crawled date: 6 years, 6 months ago

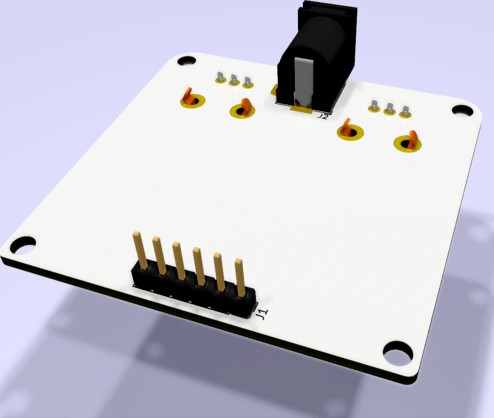

This is a template KiCAD project for making PCBs that fit into the FX Box and use the Switchboard IO PCB.
I'm using Alps RK09K1130C94 100kOhm linear taper potentiometers, usually with a 39k resistor in parallel to give them a more logarithmic-ish taper, but most potentiometers from the Alps RK09K line or compatible parts from other manufacturers like Alpha should fit right in.
You can find the main GitHub repository here: https://github.com/NuclearLighthouseStudios/FX-Template
