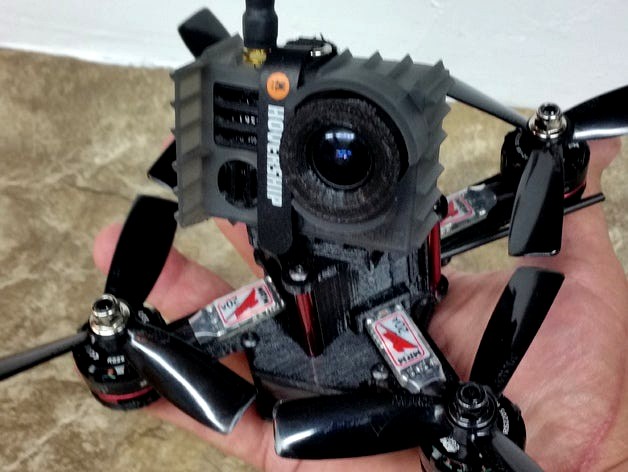

Fury 148mm Proximity Racer by BrianMatthew
by Thingiverse
Last crawled date: 4 years, 7 months ago
"I will hug him, I will pet him, I will squeeze him and I will call him Fury"
We have a nice little X style racer quad here. Not too flashy but runs all the right gear, 22xx size motors, so specific to 16x19mm bolt pattern with 3mm bolts. so it does not accept 1806 or 1306 motors with the 2mm bolts unless you use adapters. Any of the 20amp mini ESCs will fit, from Zeus, Little Bees and the classic DYS units will work, takes standard CC3D or Naze flight controllers, do all your tuning, then put the skirt on. No holes.... I recommend a 25mw Video transmitter here since there isn't much cooling inside. Also advanced soldering skills are required to attach a pig tail to the Vtx of easier assembly. The camera pod is specific to the Aomway 700tvl CMOS camera from Hobby King. But i think most CMOS cameras will fit. It takes standard antenna tubes if your using a full range RX with it. the Battery tray was designed around a 1500mah 3s pack from Lumenier, 35x25x89mm compartment size if you use flush screws under main plate like i did. For advanced builders only....
Good Luck
Brian
