Furibee X215 Pro Angled FPV Antenna Mount by jasoncoon
by Thingiverse
Last crawled date: 4 years, 5 months ago

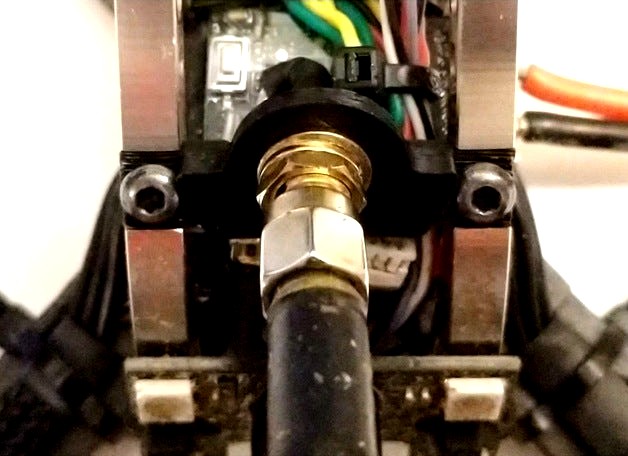

This is an angled antenna mount for the Furibee X215 Pro FPV Racing Drone
There are three different versions, depending on what angle you need:
Angled_Furibee_X215_FPV_antenna_mount_5.stl (closest to stock mount angle)
Angled_Furibee_X215_FPV_antenna_mount_4.stl (angled more towards straight backwards)
Angled_Furibee_X215_FPV_antenna_mount_3.stl (angled almost straight backwards)
I switched to a Mach 2 VTX with MMCX connector, and the SMA pigtail is too long to fit in the stock antenna mount. I just needed a slight angle to get it mounted.
I was using this one by @goebish, but decided to try making my own version.
I'm using this FC stack mount for RDQ Mach 2 VTX (slim underslung version) by Wile_E.
Also using my own remix of the soft motor mount by @mcooz. I added a bottom lip/bumper.
I damaged a couple of the stock motors, so I swapped them out for the RaceDayQuads Badass 2206 2450kv Naked Bottom Racing Motor.
