FPV panning mount for #808 keychain camera and AXN Floater Jet plane by CaptainObvious
by Thingiverse
Last crawled date: 4 years, 1 month ago
This camera mount uses a HXT500 servo to pan the camera around.
The mounting plate is attached to the inside of the nose by embedding two M3 nylon hex spacers in the foam (use the plate holes as a guide to place them). The rubber anti-vibration balls are from GoodLuckBuy (http://www.goodluckbuy.com/10mm-high-elastic-rubber-ball-dual-head-anti-vibration-for-ptz-5-pack.html)

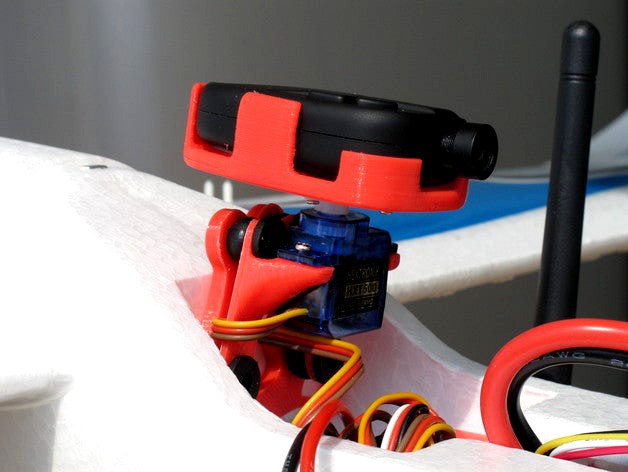

The camera saddle is screwed directly to the 4 point servo arm. there's a hole to access the screw that fixed the arm to the servo spline.
The cockpit cover has a slit cut from the back to the front, 7cm long, 8mm wide to allow it to be installed with the camera in place.
Here's a video to get an idea of the view through the camera using a wide angle lens #808 camera:http://www.youtube.com/watch?v=Z1V9QYp-7xE
The mounting plate is attached to the inside of the nose by embedding two M3 nylon hex spacers in the foam (use the plate holes as a guide to place them). The rubber anti-vibration balls are from GoodLuckBuy (http://www.goodluckbuy.com/10mm-high-elastic-rubber-ball-dual-head-anti-vibration-for-ptz-5-pack.html)
The camera saddle is screwed directly to the 4 point servo arm. there's a hole to access the screw that fixed the arm to the servo spline.
The cockpit cover has a slit cut from the back to the front, 7cm long, 8mm wide to allow it to be installed with the camera in place.
Here's a video to get an idea of the view through the camera using a wide angle lens #808 camera:http://www.youtube.com/watch?v=Z1V9QYp-7xE
