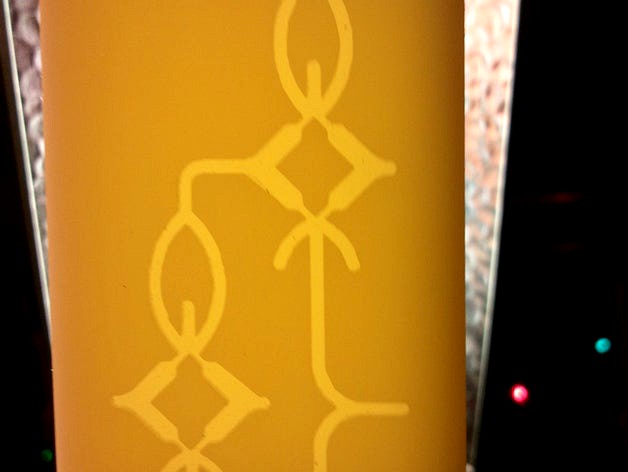

Fluidic Full Adder by Gene_Hacker
by Thingiverse
Last crawled date: 5 years, 4 months ago
This is pure fluid full adder(a component of a computer which adds two numbers together), it was "ripped" from the following patent:http://www.google.com/patents?id=fmRiAAAAEBAJ&zoom=4&dq=fluidic%20adder&pg=PA3#v=onepage&q&f=false
It is not designed for high speed operation and the output ports are probably not impedance matched. It is highly recommended that output be amplified as this circuit contains a great deal of "passive" elements(no integral fluidic amplifiers).
It has been printed, but it has not been tested.
