Flight Simulator - Large Cockpit Light - A-10C Warthog by TheWarthogProject
by Thingiverse
Last crawled date: 4 years, 3 months ago
This is a representation of the large cockpit light in an A-10C Thunderbolt II 'Warthog'.
The real jet cockpit has four of these, two on the canopy frame and two on mounts beside the seat.
I've designed this to use any type of LED light you need, so the inside of the body is a hollow tube and easily printed.
I used an eBay T10 car bulb holder, so the adaptor i used is included as well.

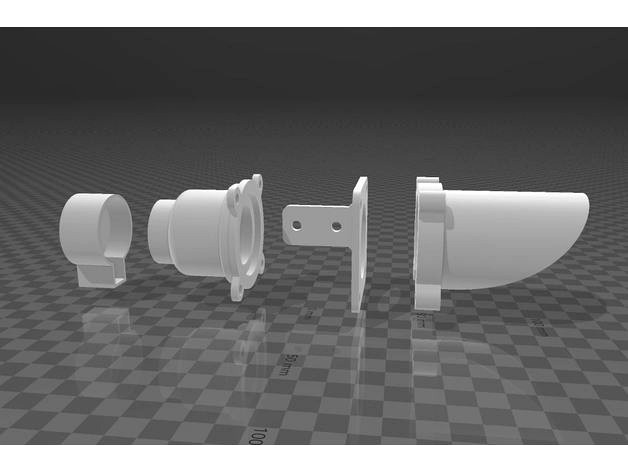

The units complete .stl is included so you can see how it fits together. I dont recommend printing it like that!
The tolerances on the end cap are deliberately tight so it press fits on and holds the unit together.
You will need four M4 X 20mm bolts and four M4 nuts.
I used a 36mm diameter, 3mm thick piece of acrylic for the glass.
Video below shows how I made mine
Visit www.thewarthogproject.com for more flight sim cockpit info!
