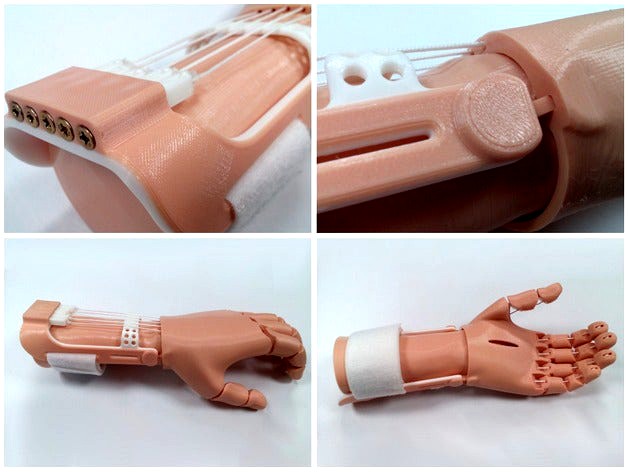

Flexy-Hand 2 - Filaflex Remix by Gyrobot
by Thingiverse
Last crawled date: 4 years, 4 months ago
My most advanced Flexy-Hand to date.
This was designed for Jack via e-NABLE. The result of a collaboration between myself and Jeff Erenstone, Prosthetist and CPO of Performance Orthopedic Design.
Optimised to be printed with flexible filaments. This version was printed with Skin I Filaflex, Skin II also available.
Key Features :
Thermoformed Gauntlet, dual material, lower layers PLA, upper layers Filaflex, great strength.
Palm socket integral to hand. Can also be filled with mouldable medium, eg, Oogoo, Sugru, Silicone, Latex or foam etc.
Each finger and thumb printed in one piece. Using CraftWare customisable supports.
Silent articulation.
Recipient's scanned limb printed with internal "bone" and wrist articulation. Using variable density "Modifier Meshes" in Slic3r.
Video here : http://youtu.be/dEQs-HXZj60
Video of the fitting to Jack on location at Mountain Orthotic and Prosthetic Services, I was privileged to be able to watch the live fitting via Google Hangouts : http://youtu.be/9EocIKpdPyw
http://www.gyrobot.co.ukhttp://www.facebook.com/gyrobotuk
