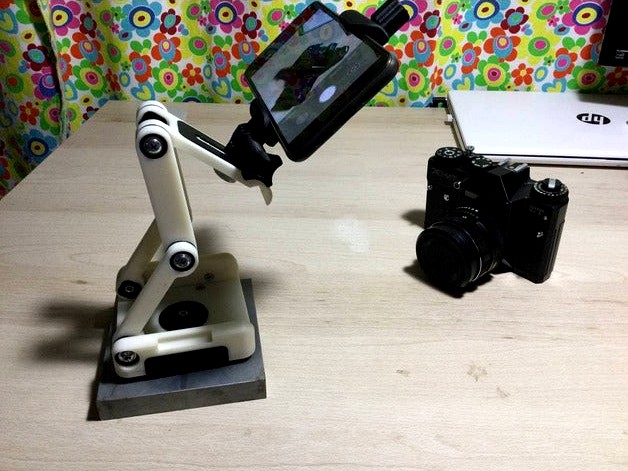

FlexTILT replica with plastic joints by DevILLz
by Thingiverse
Last crawled date: 4 years, 4 months ago
08.01 update
Added new variant of place for camera with 5mm height hole
Almost full plastic variant.
everything except base must me printed with 100% infill
BTW: you can press 2 magnets into the bottom if you dont need to use it with tripod
Best plastic choice:
1 ABS\PC
2 ABS
3 PLA
4 PetG
Current weight around 250g
You need for assemble:
6x M416 (normal screw)
8x М48 (countersunk screw)
1x М4*6 (countersunk screw)
15x М4 nuts
6x М4 washers(d2 20мм)
3/8" to 1/4" 7mm adapter
an 1/4" screw with 11.5mm neck
6шт M416 (с пресшайбой)
8шт М48 (потай)
1шт М4*6 (потай)
15шт М4 гайки
6шт М4 шайбы (d2 20мм)
переходник с 3/8 на 1/4 (высота 7мм)
винт фиксации камеры с шейкой ~11.5мм
если не найдете, ищите другие варианты сами =)
Added new variant of place for camera with 5mm height hole
Almost full plastic variant.
everything except base must me printed with 100% infill
BTW: you can press 2 magnets into the bottom if you dont need to use it with tripod
Best plastic choice:
1 ABS\PC
2 ABS
3 PLA
4 PetG
Current weight around 250g
You need for assemble:
6x M416 (normal screw)
8x М48 (countersunk screw)
1x М4*6 (countersunk screw)
15x М4 nuts
6x М4 washers(d2 20мм)
3/8" to 1/4" 7mm adapter
an 1/4" screw with 11.5mm neck
6шт M416 (с пресшайбой)
8шт М48 (потай)
1шт М4*6 (потай)
15шт М4 гайки
6шт М4 шайбы (d2 20мм)
переходник с 3/8 на 1/4 (высота 7мм)
винт фиксации камеры с шейкой ~11.5мм
если не найдете, ищите другие варианты сами =)
