Filastruder Skeleton Frame by mrflippant
by Thingiverse
Last crawled date: 4 years, 7 months ago

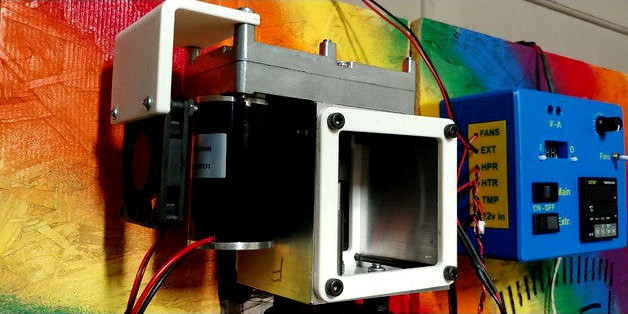

Having already pulled all the electronics out of the Filastruder case, I figured, why not remove the empty shell, too? Well, I still needed a way to hold the motor cooling fan in place, and the case screws are needed for the wall mount I'm using, and those screws need something to hold them in place for a secure mount, I decided to make a simple frame for the screws, and a bracket for the fan.
The referenced source models were used only for locating the screw holes more easily by projecting the model to a new sketch, and then deleting the stuff I didn't need. :)
Thingiverse won't let me link the back plate model I used for the fan bracket, so here that is.https://www.thingiverse.com/thing:2781444
