Hello all and welcome to both my first post and first remix.
This is a simple remix of the simple but effective filament tags by Rojaljelly (https://www.thingiverse.com/thing:3692514). Please read the original post for the basic purpose and for the tag holder they designed.

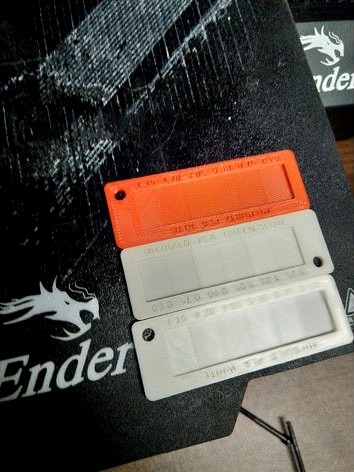

While the original is simple and effective, I prefer to know what I am looking at exactly. So I re-modeled the original in Solidworks and added configurable naming using a design table.
The naming convention is simply: BRAND - MATERIAL (eg. PLA) - COLOR
The tag also shows the thickness of each section.
I have attached the original SW file as well as a STP, IGS, and STL.
For reference on the text font used: Arial Rounded MT, bold, 10 point.
Please feel free to customize the naming to whatever filaments you have.
For the tag holder, do not worry, I know it is warped quite badly. It does the job none the less.
