Filament Spool Holder - Prusa i2/i3 style by q3ok
by Thingiverse
Last crawled date: 4 years, 5 months ago

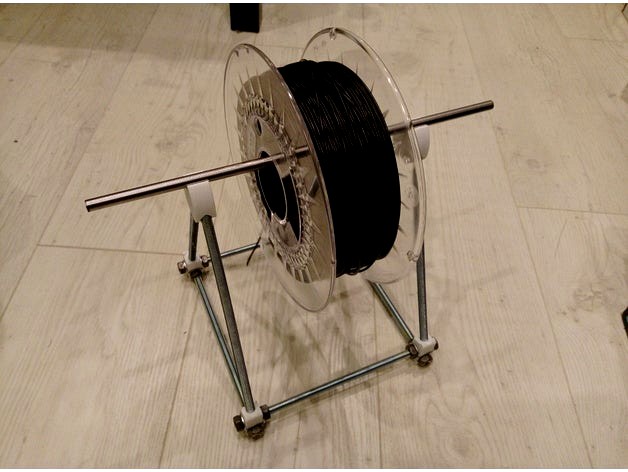

Filament spool holder/stand, with Prusa i2/i3 look.
Metal parts needed:
8x threaded rod M8x210mm
16x M8 nut
16x M8 washers
1x linear shaft dia. 8mm x 210mm
Additionally, 4x M8 nuts and 4x M8 washers can be used (for the standing rods), but its not required.
If you want to make longer stand - use 2x longer threaded rods and longer linear shaft (same length)
Threaded rods can be also printed, but I strongly recommend buying metal ones, as they are cheap.
You can also use threaded rod for the top and a additional spool holder made by rowokii, this will fit this stand as its based also on 8mm rod and 608zz bearing:http://www.thingiverse.com/thing:767317
With longer stand and this configuration you can set more spools working independently - to use with eg. multicolor printer.
