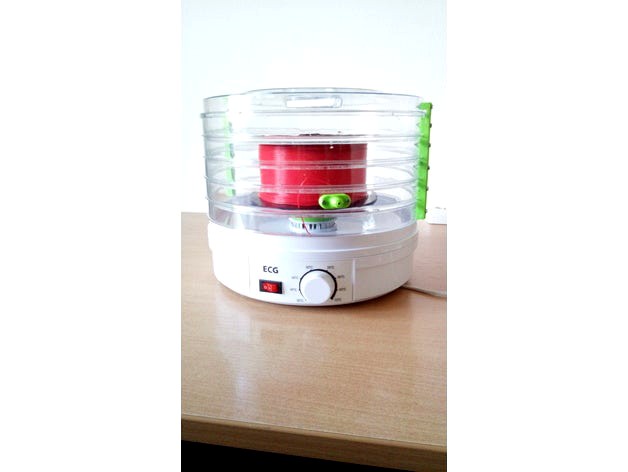

This filament dryer is based on a widely available food dehydrator ECG SO 375. There are just a few added 3D printed parts. The construction is quite clear from the pohotos. All you have to do is mechanically remove the floors grids of each sections of the plastic container. Then connecte all the sections together (using "držák_obvodu.stl" part). I made it from PLA but it seems ABS or PET would be better choice because of maxium temperature which is up to 70 °C.
Requiry material:
1) Axial bearing 51106 (Internal diameter = 30 mm, external diameter = 47 mm, height is not cricial).
2) M3x16 + nuts + washers
3) M4x16 + nuts + washers
Have fun: it works really good! I mainly use it for ABS coils.
