This is a parallel guide for festool, makita and triton copy track saw.
The way it works similar to festool parallel guide (https://www.youtube.com/watch?v=z7D0yrZY8vU)
This is my third design, and i'm pleased with it and no longer a remix, it is my original design.
This is only the hardware like https://www.senecawoodworking.com/products/parallel-guide-system-for-makita-guide-rail, you still need another hardware to make it work.
for one complete parallel guide (you need a pair) the lists are :

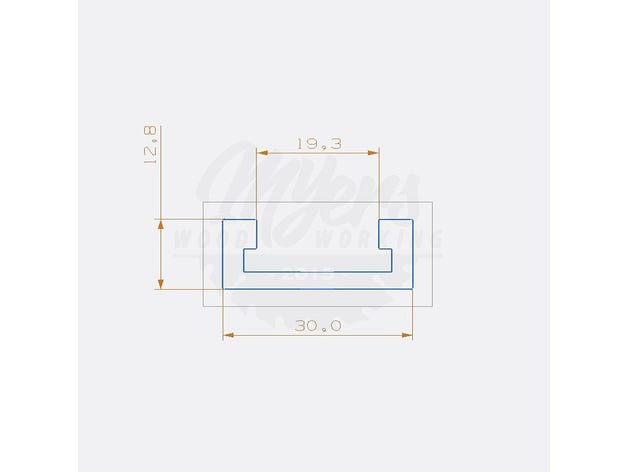

1) T-track with the size shown in picture, i believe it is more accessible rather than incra t-track plus
2) 2 t-bolt m8 which meant to be used with the t-track
3) 1 m8 knob
4) 2 m6 bolt and nut
5) 1 m8 nut
6) 1 stick on tape measure
More picture, information and how to calibrate would come later when i have finished my video.
Hope it help you all. Happy woodwork.
